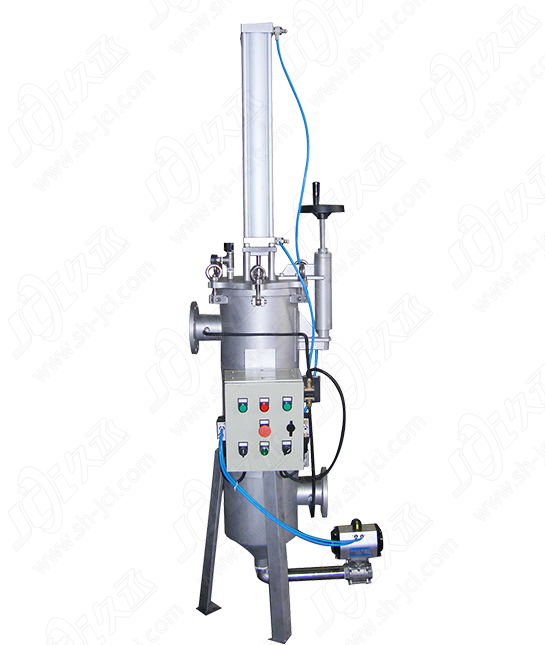

AFC Filter is a new type of self-cleaning strainer independently developed by Shanghai JCI company with our own intellectual property. It is designed for continuous online filtration to remove impurities on the outer surface of filter screen via highly-efficient mechanical scrapping.
AFC Filter is mainly designed for middle- and high-viscosity filtration, suitable for the flammable and explosive conditions, with the precision range being 50-1500μm. Featuring precise filtration can effectively remove impurities from the surface of filtering screens, thus removing more impurities with high efficiency. It applies to the filtration of water and various viscous liquids. AFC Filter designed and manufactured as per Shanghai JCI's standards for high performance, high quality and high reliability, it features internationally first-class quality.
Traditional filters easily get blocked when used to filtrating viscous materials and soft impurities. For this reason, large-sized filters are usually selected or manual cleaning is frequently conducted, resulting in heavy investment, heavy work and serious waste of materials. Such problems can be easily solved by AFC Filter with advanced self-cleaning mode. It can regularly maintain cleanness of filtering screens and expel waste fluid containing high-concentration impurities, thus reducing waste of materials. It has evident advantages and higher efficiency in filtrating poor-quality water and viscous materials such as adhesive, resin, polymer, coatings and grease. AFC Filter with notable technical advantages and low operation costs, it has gradually displaced the traditional manual filters in various fields, such as vibrating screeners, bag filters, basket filters, etc.
For more product information, please consult technical engineer,Tel:15216604123
【Filtering status】
Liquid flows inside from the inlet.The liquid flows outwards from the inner surface of the filter screen, and the impurities are intercepted on the inner surface. Then, the liquid flows out from the outlet; with the passage of time, the impurities gradually increase, and differential pressure rises. We can begin to clean the filter screen according to the preset differential pressure or the timing.
【Cleaning status】

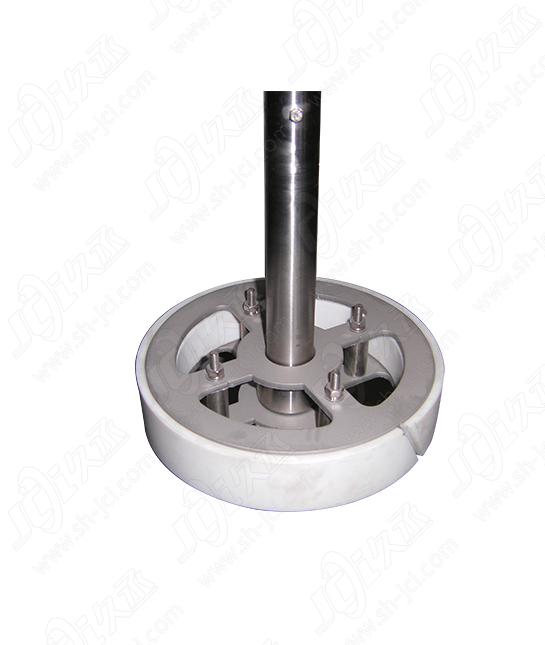

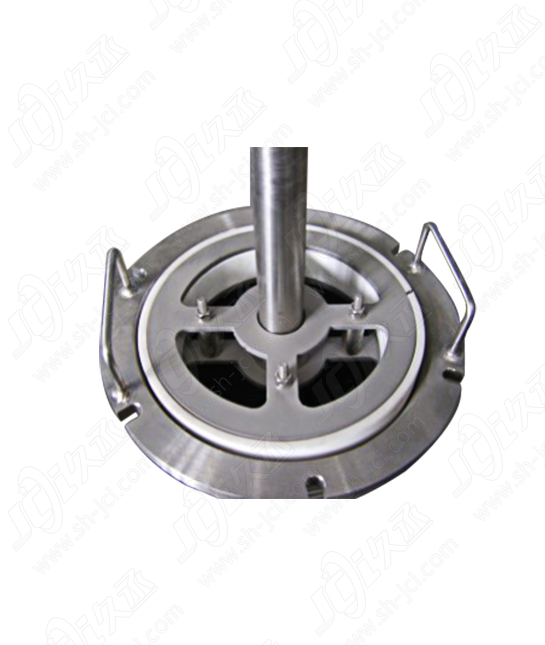

Cylinder drives the scraper to do reciprocating movement up and down to clean filter screen. When the scraper moves downwards, the impurity is pushed to the bottom of the filter by the scraper, and the large proportion of impurities is deposited into the dirty collector; when the scraper moves upwards, the residual impurities are scraped and pushed to the upper end of the filter screen. The impurities are washed away by the flowing liquid, back to the inner surface of the filter screen, and is swept away when the scraper moves downward. Each cleaning is made up of a number of strokes. After the filter screen is cleaned, the filtering ability is restored. No filtration interruption while self-cleaning.
【Discharging status】
After a number of cleaning cycles, impurities accumulate to a certain amount. Regular opening of drain valve, and the waste liquid containing high concentration of impurities is discharged. which can also be recycled, if necessary.
For more product information, please consult technical engineer,Tel:15216604123
■ Horizontal rotary scraping, scraping off the impurities directly, is good at filtering viscous liquids and removal of viscous, soft and suspended impurities;

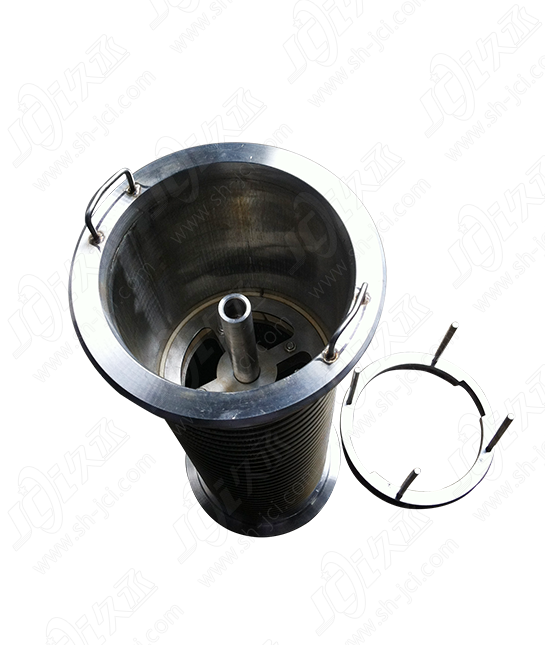

■ Simple structure, easy dismounting; after removing the scraper, easy to take out the filter screen, and easy to clean the inside;
■ Automatic operation, continuous online filtration, to end up the heavy filter screen replacement and cleaning work;
■ Do not produce disposable filter material, saving consumables costs and environmental costs;
■ Small filtration pressure loss, stable flow rate, energy saving is beneficial to the continuous stability of the whole process;
■ Sealed filtration, preventing dangerous material leakage, is advantageous to the safe production and the staff health;
■ Discharge waste liquid with high impurities concentration can be recycled, to reduce the loss of high-value materials;
■ A variety of advanced control systems are optional, powerful, efficient and reliable;
■ Selection of world-renowned brands of components, high reliability, low costs.
Automatic Cleaning Control System
Accumulation of of filter cakes and the blocking of the filter element. When the preset pressure differential is reached, it starts the self-cleaning action. It is suggested that the cleaning pressure differential is 0.1MPa, which can be adjusted within the scope of 0.01-0.1MPa, by the working conditions. Periodically cleaning can be set 0-24 hours, and if the differential mode is inefficient, time pattern still works. It can be considered as the ultimate protection. The cleaning period setting should be close to the average period of the filter pressure differential cleaning mode.
For more product information, please consult technical engineer,Tel:15216604123
■ Applicable fluid types: Resin, coatings, polymers, adhesive, citric acid, fermentation liquor, chitosan, cosmetics, sepharose, silicone solution, soap, sorbitol, steroids, cereal syrup, wet end aids, pigments, lubricant, rubber, ethanol, mixed oil, edible oil, hot fry oil, fruit juice, diesel, etc.
■ Filtration effect: Constant-value screening, removing large particles, purifying fluid, and protecting key equipment.
For more product information, please consult technical engineer,Tel:15216604123
Technical Parameters & Specifications:
Applicable liquid |
Water and viscous liquids(˂800,000cps); impurity level˂1,000ppm |
Filter precision |
50-1,500μm |
Design pressure |
1.0MPa(Higher pressure can be customized.) |
Design temperature |
0-200°C(It depends on seals.) |
Single filtering area |
0.14m2-1.45m2 |
Cleaning Pressure Drop |
0.05MPa |
DP controller |
Differential pressure transmitter or differential pressure switch |
Gear motor |
Three-phase power, 380V, protection grade IP55; Turbine worm reducer |
Connection Standard |
Flange, HG20592-2009(Standard), HG20615-2009( ANSI B16.5 Compatible) |
Filter elements |
V-shaped wadge net |
Filter element material |
304/316L/2205/Titanium |
Housing material |
304/316L/CS |
Scraper material |
PTFE |
Housing seal material |
NBR Nitrile Rubber(Standard)/viton (FKM) fluoro rubber |
Discharging valve |
Pneumatic ball valve, protective grade IP65 |
Facility supply |
380V AC, 0.4-0.6MPa Clean and dry compressed air |
Equipment main parameters and dimensions:
Filter main model |
AFC14 |
AFC28 |
AFC42 |
AFC77 |
AFC116 |
AFC145 |
Filtering area (m2) |
0.14 |
0.28 |
0.42 |
0.77 |
1.16 |
1.45 |
Import and export size |
DN20-DN50 |
DN50-DN80 |
DN50-DN100 |
DN65-DN100 |
DN80-DN125 |
DN100-DN150 |
Outlet size |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN50 |
Cylinder diameter |
273 |
273 |
273 |
460 |
550 |
550
|
