CFP Series Pressure Leaf Filter

  • Product introduction
  • Working principle
  • Technical advantages
  • Specification parameter
CFP Filter is a kind of precision clarifying filtration equipment featuring high efficiency, energy saving and closed-form operation. It is designed with unique structure, small size, high filtering efficiency and transparent filtrate, featuring no material loss, no consumption of filter paper, filter cloth or filter element, and only small consumption of filter aid. It is therefore characterized by low filtration cost as well as easy operation, maintenance and cleaning. It applies to solid-liquid separation or clarifying filtration in many fields such as seasoning, liquor, grease, chemical engineering, pharmacy and beverage.

CFP filter screen is totally made of stainless steel. The whole filtration process is carried out in a closed container. After filtration is completed, automatic discharge can be realized.

CFP filter is a dual-area filter, the filtration area from 2 to 200 m2 for users to choose from. Material for closed containers can be customized carbon steel or stainless steel as the filtration process requirements.


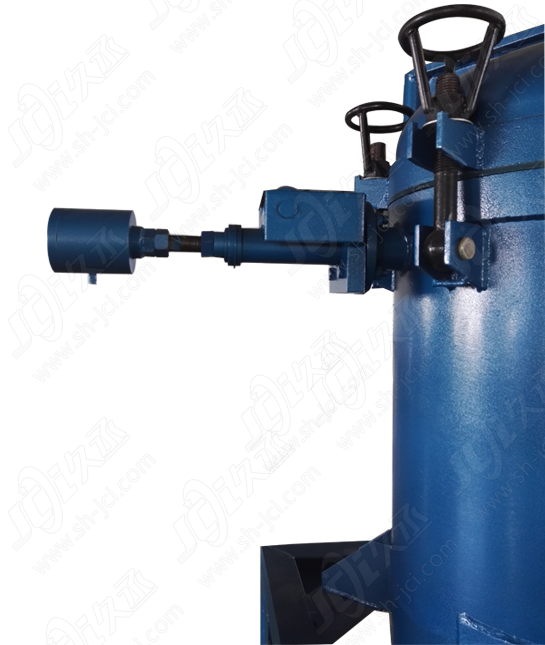

The main structure

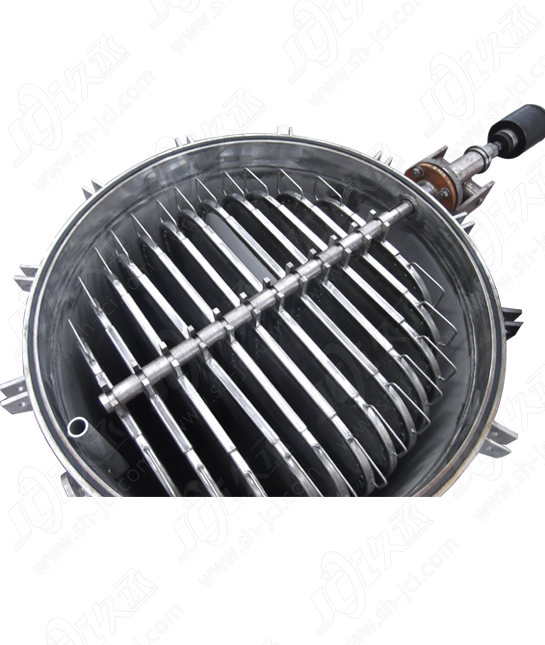

CFP Filter is composed of housing, filter screens lifting device, auto discharing device, etc., in which the screens are made of multilayer stainless steel wire mesh installed on the central liquid tube, easy disassembly and cleaning. If it is as a liquid clarification or decolorization filtration, in the filtration process, we need to use diatomite filter aid. We need to increase diatomite mixing tanks as a precoating and the corresponding corresponding circulation pipeline and diaphragm-type metering pump, electrical system to measure and add diatomite.

Field case



For more product information, please consult technical engineer,Tel:15216604123



When the CFP closed-plate filter completes the filtering work, it is necessary to first use a pump to send the filtrate to the filter through the liquid inlet pipe and fill it. Under the effect of pressure, the solid impurities in the filtrate are trapped by the filter screen and filtered. A filter cake is formed on the net, and the filtrate passes through the filter through the filter and enters the outlet pipe to flow out of the tank, so as to obtain a clear filtrate. With the increase of the filtration time, more and more solid impurities are trapped on the filter screen, which makes the thickness of the filter cake continuously increase, which increases the filtration resistance and the pressure in the tank. When the pressure reaches the value, it is necessary to discharge the slag, stop inputting the filtrate to the irrigation and blow the compressed air into the tank through the overflow pipe, hydraulically filter the tank into other containers, and blow dry the filter cake. Close the compressed air, open the butterfly valve, start the vibrator, make the filter screen vibrate, shake off the filter cake on the filter screen and discharge through the slag discharge port under the tank.

When the CFP closed-plate filter is used as a clarifying filter for liquids, a stainless steel filter sheet is used to support and adsorb filter aids such as diatomaceous earth in the sealed case of the filter tank. After the filter aid is mixed with the material in the mixing tank, it is circulated by a pump to make a stable filter cake layer on the filter sheet, that is, diatomite pre-coating. After the pre-coating is completed, the filtration starts. The small filter aid particles can provide countless fine channels, trap suspended debris, and only the clear liquid passes. During the filtration process, continuous addition of filter aids such as diatomaceous earth to A new filter layer is formed so that the filter cake will not be blocked, so that the material will be substantially filtered through the filter cake layer to remove impurities, flow into the inner cavity of the filter screen, and then flow out the clear liquid through the liquid outlet pipe. In addition, if decolorization is required during filtration, a proportion of activated carbon needs to be added.

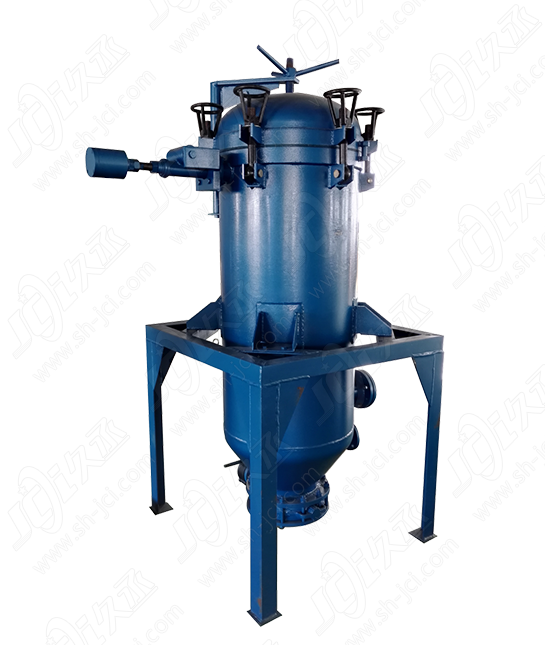

CFP renderings


For more product information, please consult technical engineer,Tel:15216604123
1. Petrochemical engineering: MMA, TDI, polyurethane, PVC and other synthetic resins, caprolactam, DOP and other plasticizer, terephthalic acid, adipic acid, petroleum resins, epoxy resins, all kinds of organic solvents;
2. Organic chemistry: organics pigments, dyes, ethylene glycol, propylene glycol, poly propylene glycol, surfactants, various catalysts, activated carbon decolorization filtration, etc.
3. Inorganic chemical industry: inorganic pigments, waste acid, sulfuric acid, sodium phosphate and other solutions, titanium dioxide, cobalt, titanium, zinc and other refining, nitrocellulose, pesticides, insecticide.
4. Oil industry: all kinds of animal and vegetable oil white soil filtration, lecithin soybean crude oil filtration, hardening oil and fatty acid catalyst filtration, dewaxing, waste white soil treatment, edible oil refining filtration, etc.
5. Food industry: sugar, caramel, maltose, glucose, tea, fruit juice, refreshing drink water, wine, beer, wheat juice, dairy products, vinegar, soy sauce, sodium alginate, etc.
6. Fiber industry: rayon, acetic acid fiber solution, chemical fiber intermediates, waste liquid, etc.
7. Paint: natural paint, acrylic resin varnish, paint, rosin natural resin, etc.
8. Pharmaceutical industry: fermentation broth, culture liquid, enzyme, amino acid crystallization slurry filtration, cleaning and drying, glycerol activated carbon filtration, etc.
9. Mineral oil: white soil filtration of mineral oil, cutting oil, grinding oil, roll oil, waste oils, etc.

For more product information, please consult technical engineer,Tel:15216604123
Technical Parameters & Specifications
Cake volume(L) Grease Resin Drink Preset pressure Highest pressure Operating temperature Main volume(L) Host weight(KG)
30 0.4-0.6 1-1.5 1-3       120 300
60 0.5-1.2 2-3 2-5       250 400
105 1-1.8 3-6 4-7       420 600
150 1.6-3 5-8 6-9       800 900
240 2-4 6-9 8-11       1000 1100
300 3-5 7-12 10-13       1300 1350
400 4-6 9-15 12-17       1680 1650
500 5-7 12-19 16-21       1900 2150
600 6-8 14-23 19-25 0.1-0.4 0.5 ≤150 2300 2550
720 7-9 16-27 23-30       2650 3000
800 8-11 21-34 30-38       2900 3200
900 9-13 24-39 36-44       3200 3500
1040 10-15 27-45 42-51       3800 4000
1200 11-17 30-52 48-60       4500 4500
1400 12-19 36-60 56-68       5800 5500
1600 13-21 40-68 64-78       7200 6000
1800 14-23 43-72 68-82       7700 6500
Shape and installation dimensions
Model Tank diameter Filter spacing Inlet/Outlet Overflow outlet Disharge outlet Height(mm) Floor area(m2)
CFP-2 ø400 50 DN25 DN25 DN50 1550 620*600
CFP-4 ø500 50 DN40 DN25 DN50 1800 770*740
CFP-7 ø600 50 DN40 DN25 DN250 2200 1350*1000
CFP-10 ø800 70 DN50 DN25 DN300 2400 1550*1050
CFP-12 ø900 70 DN50 DN40 DN400 2500 1650*1200
CFP-15 ø1000 70 DN50 DN40 DN500 2650 1750*1300
CFP-20 ø1000 70 DN50 DN40 DN500 2950 1750*1300
CFP-25 ø1100 70 DN50 DN40 DN500 3020 1850*1400
CFP-30 ø1200 70 DN50 DN40 DN500 3150 2030*1550
CFP-36 ø1200 70 DN65 DN50 DN500 3250 2030*1550
CFP-40 ø1300 70 DN65 DN50 DN600 3350 2130*1560
CFP-45 ø1300 70 DN65 DN50 DN600 3550 2130*1560
CFP-52 ø1400 75 DN80 DN50 DN600 3670 2230*1650
CFP-60 ø1500 75 DN80 DN50 DN600 3810 2310*1750
CFP-70 ø1600 80 DN80 DN50 DN700 4500 3050*1950
CFP-80 ø1750 80 DN80 DN50 DN700 4500 3210*2100
CFP-90 ø1850 80 DN80 DN50 DN700 4650 3300*2200
